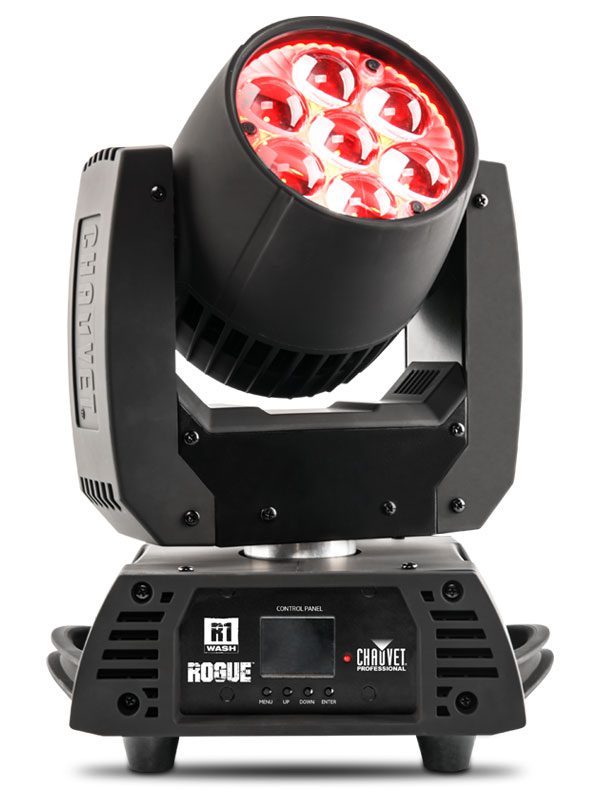

Chauvet Rogue R1 Wash


Rogue R1 Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 15 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 11° to 48° zoom angle, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

7 RGBW LEDs, 15 W each
3- and 5-pin DMX input/output connections
Unique lens design for excellent color blending
Fast, smooth pan and tilt movement
6 distinct dimming modes for advanced control
Omega mounting bracket, fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

CLICK FOR USER MANUAL PDF
SPECIFICATIONS

Light Source 7 x 15 W quad-color RGBW LEDs (red, green, blue, white)
Current: 980 mA
Life Expectancy: 50,000 hours
Illuminance Narrow (11°): 3098 lux at 16.4' / 5 m
Wide (48°): 299 lux at 16.4' / 5 m
Color Temperature 2800 to 10,000K
Beam and Field Angle Beam Angle: 8 to 30°
Field Angle: 11 to 48°

PWM Frequency 1200 Hz
Pan & Tilt 540° / 230°
Pan & Tilt Range Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 230°
Effects Electronic Dimming: 0-100%, with six dimming modes
Shutter/Strobe: Electronic, variable from 0 to 20 Hz
Zoom: Motorized
Standalone color mixing
Color-temperature presets
Built-in automated programs
DMX Interface Channels: 14, 15, 19, or 21
Modes/Personalities: 4 personalities (14CH, 15CH, 19CH, or 21CH)
Connectors: 3-pin XLR in/out and 5-pin XLR in/out
Display/Controls OLED display with 4-button control panel
Power Linking 10 units at 120 VAC
18 units at 208 VAC
21 units at 230 VAC
Power Requirements 100-240 VAC, 50/60 Hz (auto-ranging)
Power Connectors Input: 1 x Neutrik powerCON
Output: 1 x Neutrik powerCON
Power Cord Edison plug to Neutrik powerCON (included)
Length: 5.0' / 1.5 m
Power and Current 161 W, 1.34 A at 120 VAC, 60 Hz
141 W, 0.72 A at 208 VAC, 60 Hz
139 W, 0.62 A at 230 VAC, 50 Hz
Fuse F 4 A, 250 V
Maximum Operating Temperature External: 113°F / 45°C
IP Rating IP20, dry location
Approvals CE, MET, RoHS
Dimensions 7.36 x 10.43 x 13.94" / 187 x 265 x 354 mm
Weight 13 lb / 5.9 kg
