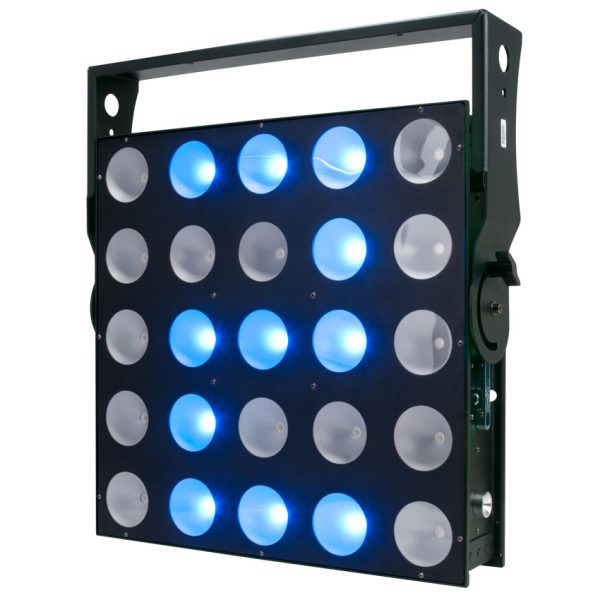

The new CUEPIX Panel features (25) long life 30W 3-in-1 RGB COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module, variable / selectable dimming curves, strobe and zone chase effects, flicker free operation for TV and Film, 3pin and 5pin DMX and powerCon in/out connections, LCD menu display with 4 button control panel, integrated rigging points and optional rigging bracket available, and a multi-voltage universal auto switching power supply (100-250v).
SOURCE (25) 30W 3-in-1 RGB COB LEDs 100,000 Hour Average Life
PHOTOMETRIC DATA 15,490 Max LUX (1439 fc) @2M (Full On) 3310 Max LUX (307 fc) @2M (Red LEDs) 3720 Max LUX (346 fc) @2M (Green LEDs) 5870 Max LUX (545 fc) @2M (Bllue LEDs)
FEATURES High Power Long Life 3-in-1 RGB COB LEDs 60° Beam Angle / 80° Field Angle Color Mixing + Individual Control of Each COB Module Dimming : 0% – 100% of Each COB Module Strobe, and Zone Chase Effects RDM (Remote Device Management) Flicker FREE Operation for TV and FILM Stand Alone Operation with Master/Slave Function Integrated Rigging Points and Optional Rigging Bracket
EFFECTS Variable / Selectable Dimming Curves Auto Chase and Zone Program Macros
CONTROL / CONNECTIONS 5 DMX Channel Modes (3 / 6 / 7 / 75 / 79) 4 Button Control Panel and LCD Menu Display 3pin and 5pin DMX In/Out RDM (Remote Device Management) powerCON Power In/Out
